Guidetti Sincro Mill Line

Granulators for electrical & electronic wires

Guidetti Sincro Mill Line


The new compact granulators of the SINCRO MILL Series
 allow the simultaneous processing of both solid and stranded copper wires without pre-selection – and they are as easy to maintain as all of Guidetti’s products.

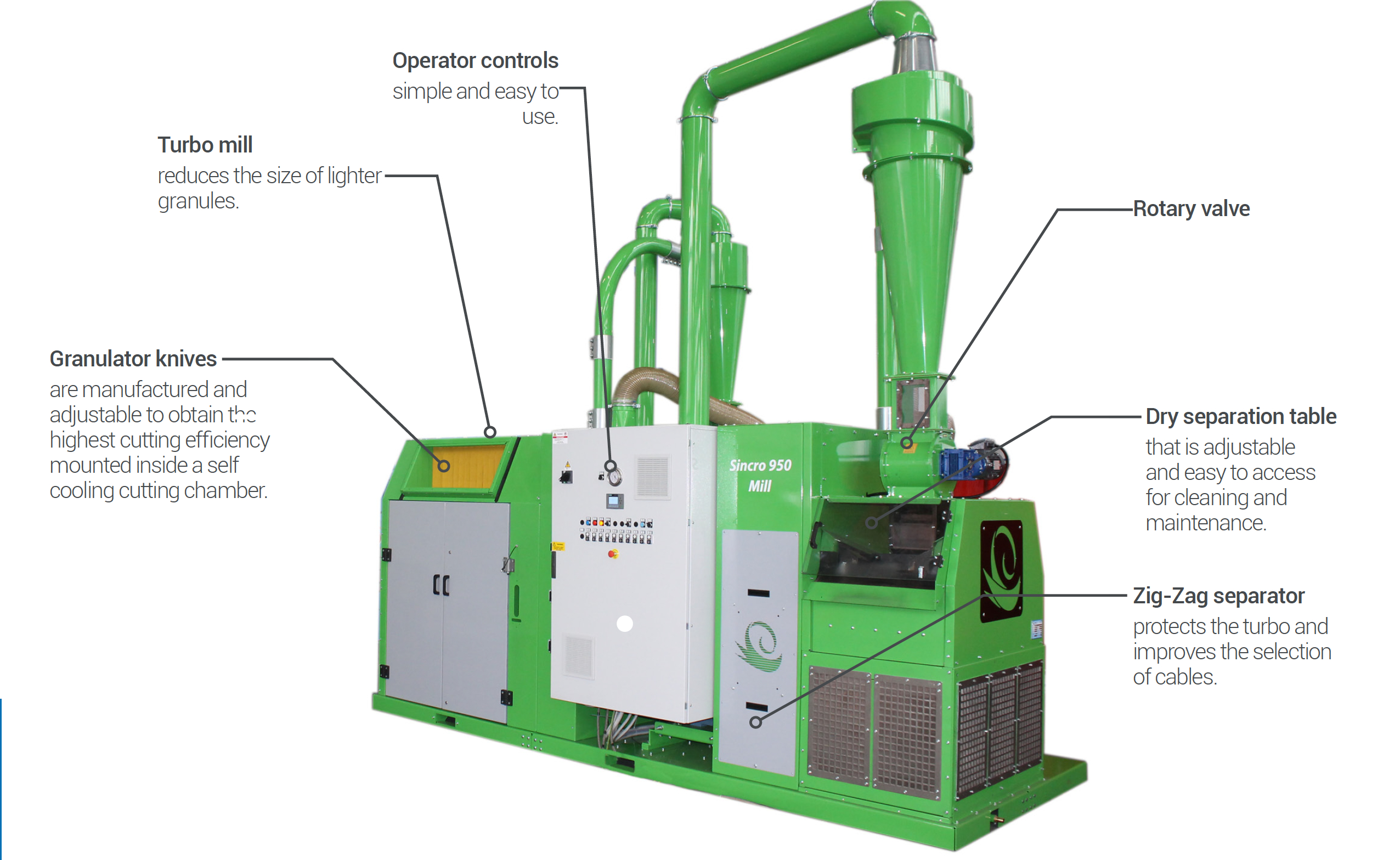

Despite its compact design and low energy consumption, the Sincro Mill is a fully integrated system that includes a blade granulator, a zig-zag separator, a turbo and a separating table to ensure perfect separation at the end of the cycle.

Substantial metal parts contained in plugs, connectors or solid copper wires are separated directly at the zig-zag while the very thin stranded wires are further reduced in the turbo, improving separation quality and reducing the loss of metals in the plastic almost down to zero.

The unit can be combined with the Guidetti PMG pre-shredder series.

• With manual and automatic feeding
• CE conformity
• Interfaces to connected to optional additional equipment
• Operator control panel with programmable PLC
• Easy maintenance

Advantages and innovative features of this series:

• Dust emissions in surrounding air comply with current legislation
• Reduced noise pollution (definitely lower than other machines of this kind)
• Lower energy consumption per ton of grinded wire
• Lower maintenance costs per ton of grinded wire
• Constant production with an over 99.9% purity rate of metals and plastics

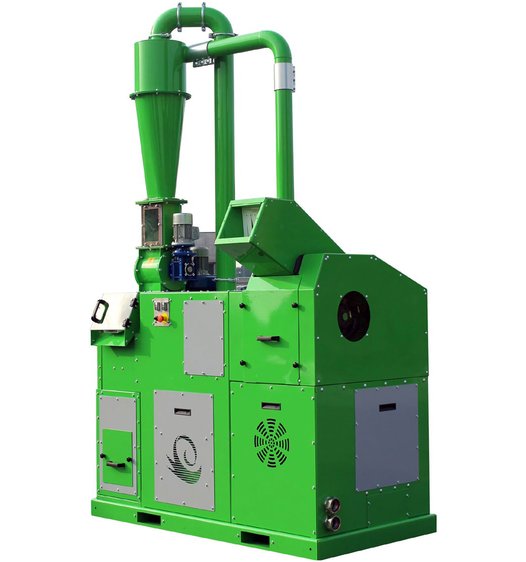

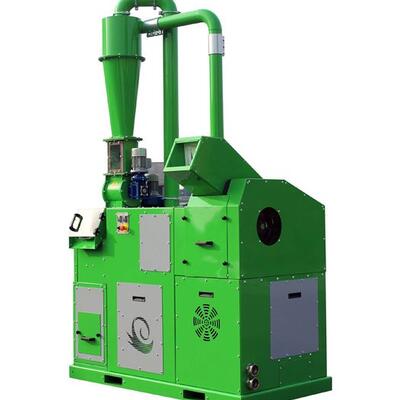

Guidetti 215 Sincro Mill
Guidetti 315 Sincro Mill

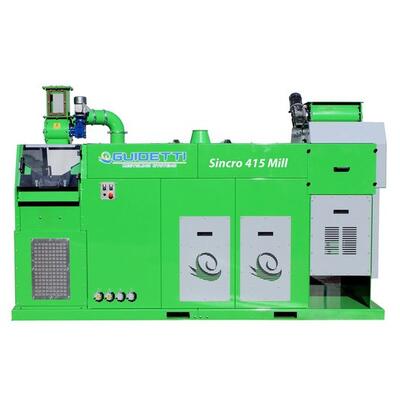

Guidetti 415 Sincro Mill

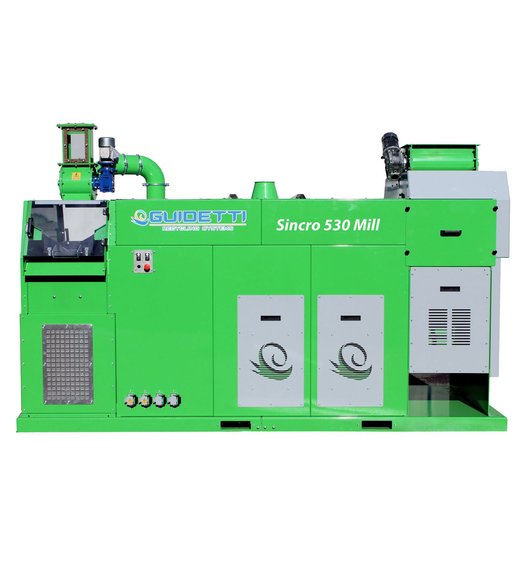

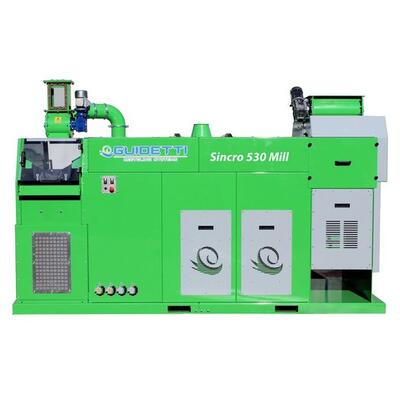

Guidetti 530 Sincro Mill

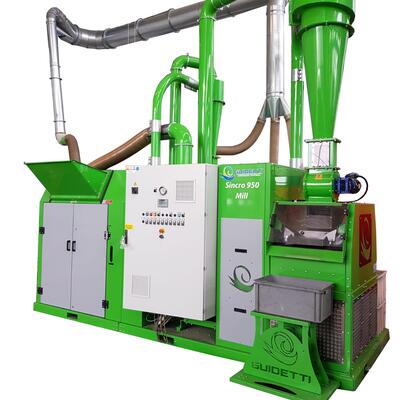

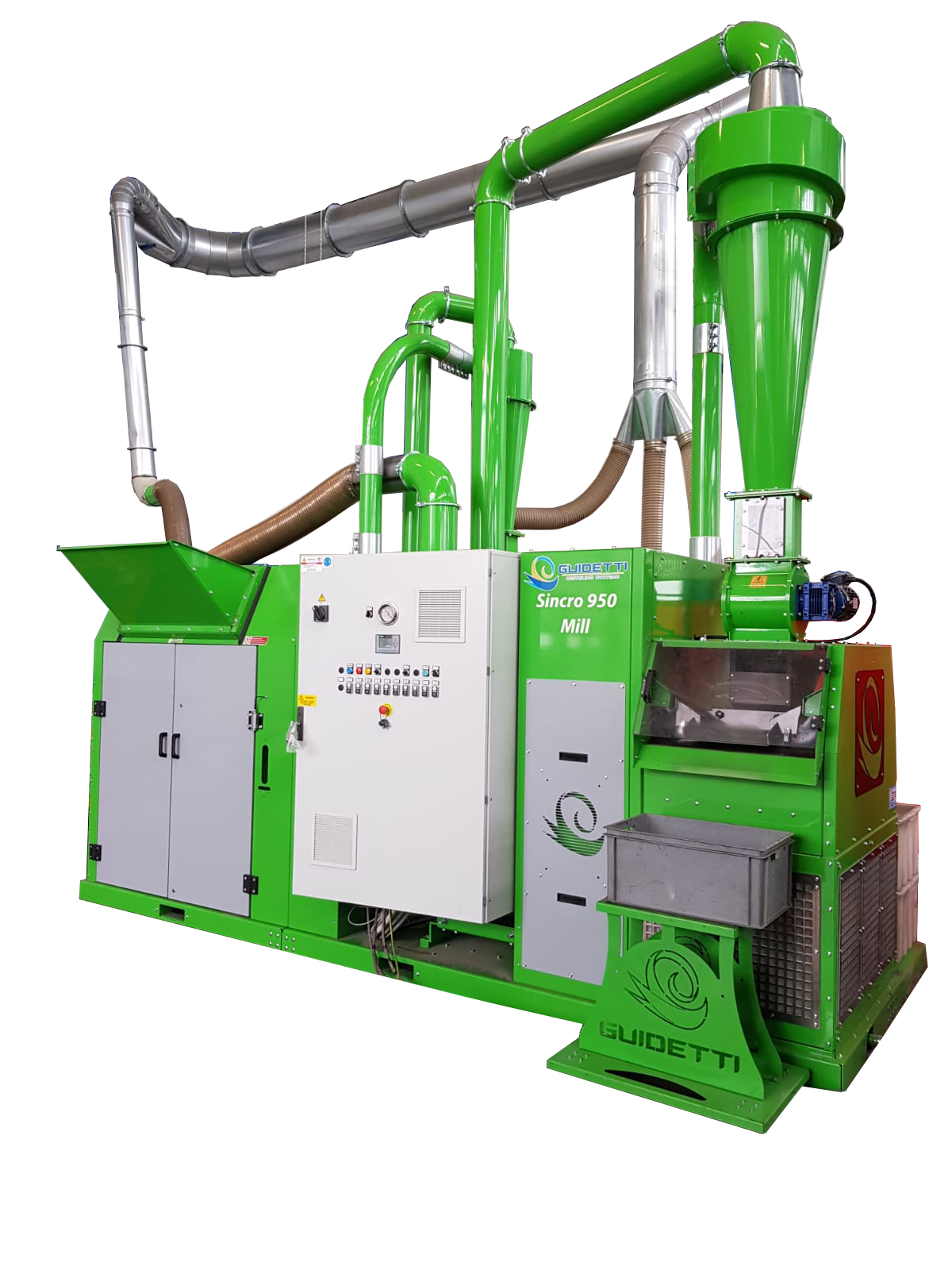

Guidetti 950 Sincro Mill

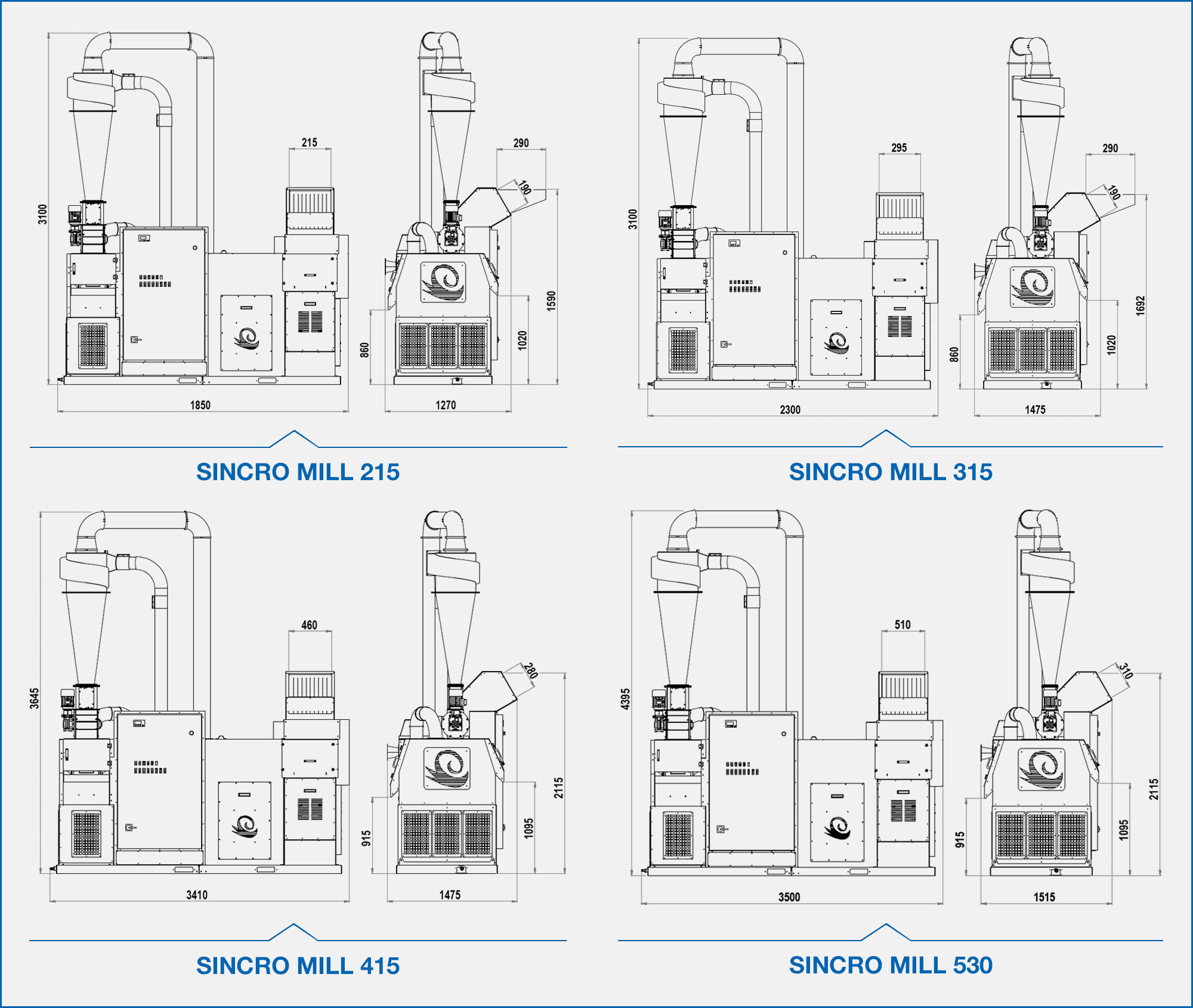

Technical
Data
Length Width Height Weight Power Production
SINCRO MILL
950
4516
mm

177.8''
  4403
mm

173.0''
5500
kg

12,125
lb
99.5
kw

133.5
HP
1000-1200
kg/h

2200-2645
lb/h
SINCRO MILL
215
2300
mm

90.6''
1458
mm

57.4''
3084
mm

121.4''
970
kg

2138 lb
12.5
kw

16.8 HP
80-120
kg/h

176-264
lb/h
SINCRO MILL
315
2316
mm

91.2''
1475
mm

58.1''
3100
mm

122.0''
1200
kg

2646
lb
20.0
kw

26.8
HP
130-180
kg/h

286-396
lb/h
SINCRO MILL
415
3410
mm

134.3''
1472
mm

58.0''
3637
mm

143.2''
2500
kg

5512
lb
38.0
kw

50.9
HP
250-330
kg/h

551-727
lb/h
SINCRO MILL
530
3410
mm

134.3''
1515
mm

59.6''
4395
mm

173.0''
2700
kg

5952
lb
53.0
kw

71.0
HP
450-600
kg/h

992-1322
lb/h

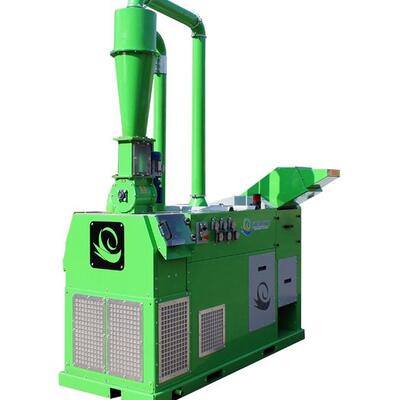

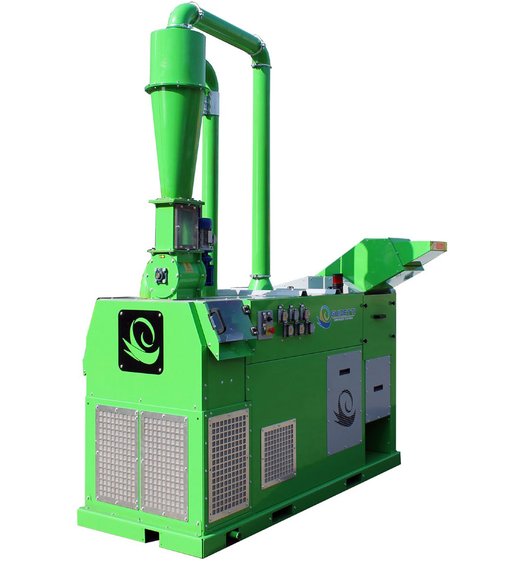

Guidetti Sincro Mill 315
